automatic washer extractor
1. The name and type of the machine.

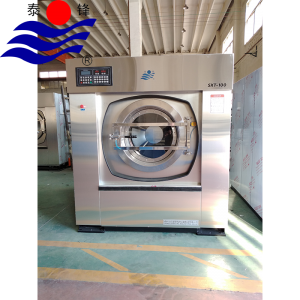

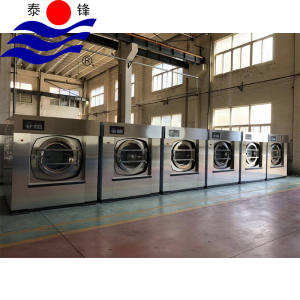

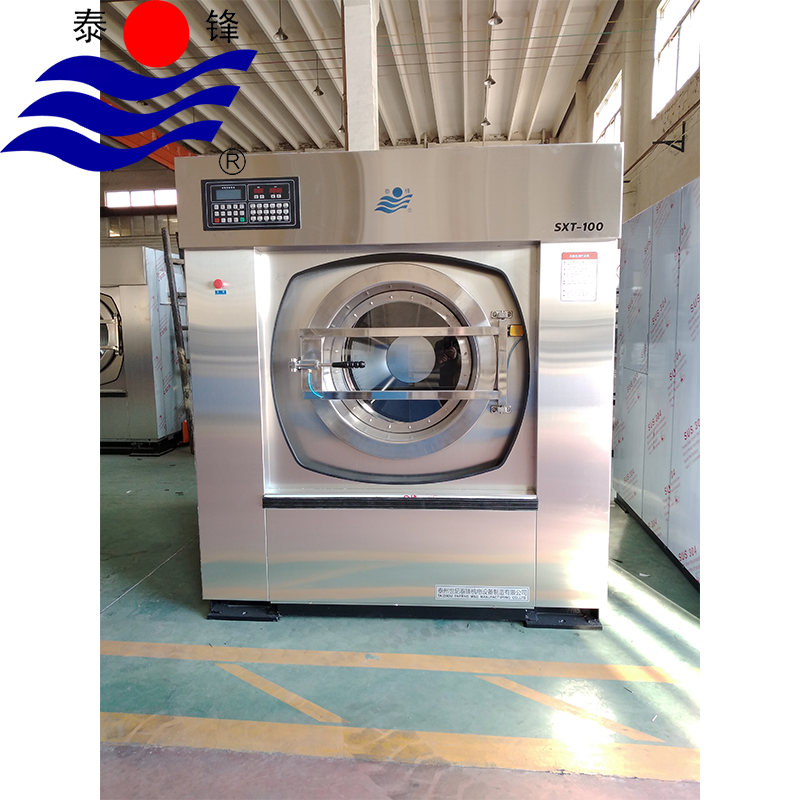

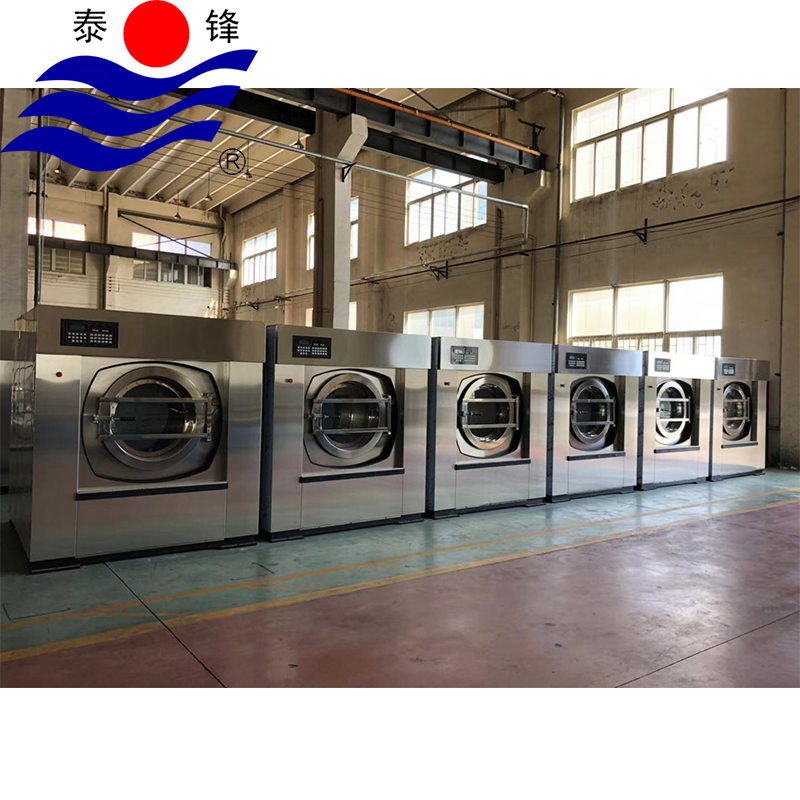

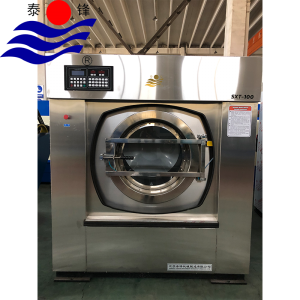

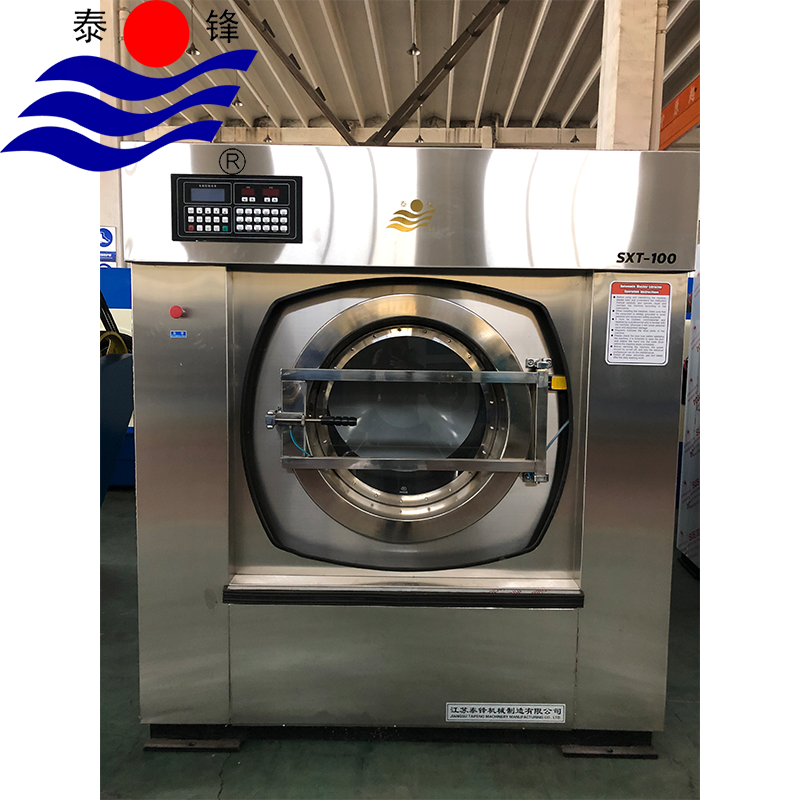

SXT-15 & 20 & 30 & 50 & 70 & 100 Washer Extractor
2. Function, feature of the machine.
full-automatic&manual
big capacity can be chosen
well-structured
stainless steel
Computer-controlled, automatic/manual, big washing capacity, good washing effect, low energy consuming, low noise and shaking, beautiful appearance.
Advanced structure, reducing shaking by suspension.
Speed control by frequency conversion, energy saving.
It can be widely used in hotels, restaurants, hospitals, schools and laundries.
Cotton, wool, linen and chemical fabric goods can be washed.
3. Specification
|
Model |
SXT-20 |
SXT-30 |
SXT-50 |
SXT-70 |
SXT-100 |
SXT-120 |
|
Rated Capacity (kg) |
20 |
30 |
50 |
70 |
100 |
120 |
|
Volume (L) |
208 |
310 |
508 |
724 |
1002 |
1195 |
|
Motor Power (kw) |
2.2 |
4 |
5.5 |
7.5 |
7.5 |
11 |
|
Washing Speed （rpm） |
40 |
40 |
40 |
40 |
30 |
30 |
|
Extracting Speed （rpm） |
375/750 |
375/750 |
360/700 |
350/650 |
350/650 |
350/650 |
|
Water Consumption (kg) |
180 |
330 |
500 |
850 |
960 |
1020 |
|
Steam Consumption (kg) |
13 |
20 |
30 |
45 |
50 |
52 |
|
Electricity Consumption (kw) |
1 |
1.5 |
2.1 |
2.8 |
3.2 |
4.5 |
|
Overall Dimensions(L*W*H) (mm) |
1050*1150 1520 |
1350*1350 *1730 |
1470*1800 *1800 |
1740*1770 *1910 |
1760*2050 *1970 |
1880*2000 *2060 |
|
Weight （kg） |
350 |
1200 |
1735 |
2400 |
2700 |
3100 |
4. Documentation
1）Operational manual with English will be given at the time of dispatch of machine.
2）All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
3）Copy of ISO 9001 and CE certificate.
Related products
-
automatic ironing machine
1. The name and type of the machine. Y Ironing Machine 2. Function, feature of the machine. The machine uses an electric motor and an imported frequency inverter, so the ironing speed can be adjusted in a stepless manner according to the width of cloth, different conditon of steam supply. Rollers are made of Φ800 stainless steel. Other components are galvanized or being antiseptic treatment. Quick heating effect. Direct heating type of drum. The utilization rate of effective
-
automatic tilting washer extractor
SXT-FX series automatic tilting washer extractor is developed based on automatic washer extractor, which can save labor and cost a lot. It is widely used in hotels, restaurants, hospitals, washing factories, garment factories, industrial&mining enterprises etc. Automatic tilting, suspension shock absorbtion, frequency speed control, convenient unloading. Touch screen type programmable microcomputer control is adopted, large screen dot matrix LCD display, interactive interface, has the fun...
-
barrier washer extractor
1. The name and type of the machine. BW Barrier Washer Extractor 2. Function, feature of the machine. Computer-controlled, automatic/manual, big washing capacity, good washing effect, beautiful appearance. Flexible shockproof technology, low noise and shake. Frequency control, ease of operation, low energy consuming. It divides the laundry room into two separate independent operating areas,via.: “Clean” area and “Non-Clean”room. Launderettes will be loaded into the wa...
-

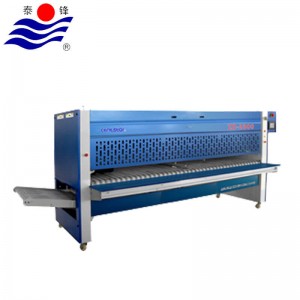

folding machine
